Multifunction Switch Connectors (C202)
Multifunction Switch Connectors (C202)

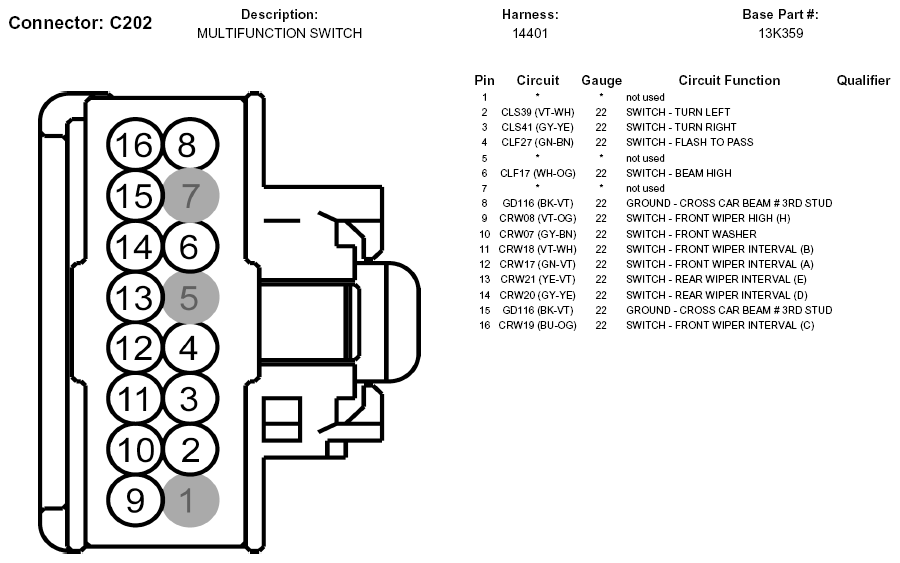

Fig 1: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.
