Keyless Entry Keypad Connector (C500)

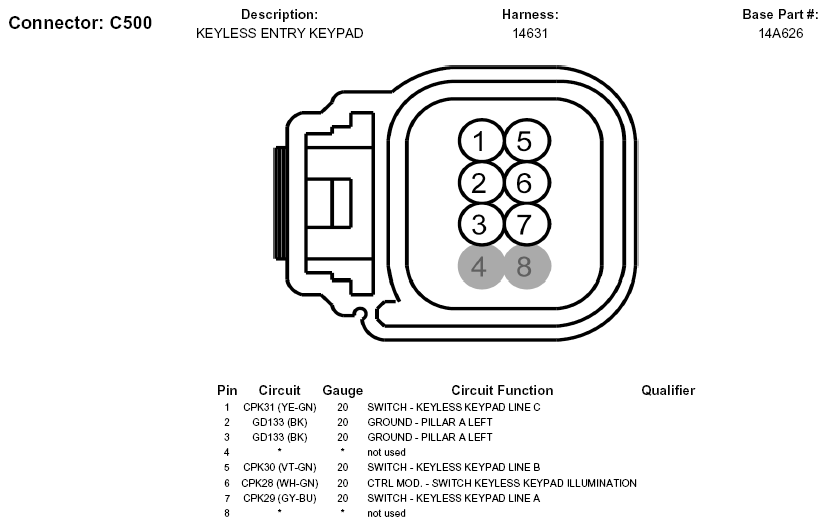

Fig 1: Keyless Entry Keypad Connector End View (C500)
G05747014Courtesy of FORD MOTOR CO.
