Removal and Installation

WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the 3 bolts and position the degas bottle aside.
- To install, tighten the bolts to 10 Nm (89 lb-in).
Fig 1: Locating Degas Bottle Bolts
Courtesy of FORD MOTOR CO.

Vehicles equipped with 6.0L engine or Hydro-Boost®
Remove the Air Cleaner (ACL). For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
All vehicles
Disconnect the ABS module electrical connector.
- Release the lock tab.
- Pull the connector from the module.

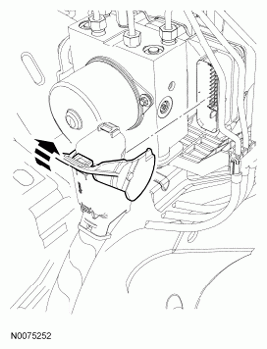

Fig 2: Locating ABS Module Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the 4 screws and the ABS module.
- To install, tighten the screws to 5 Nm (44 lb-in).
To install, reverse the removal procedure.

For vehicles equipped with Roll Stability Control (RSC®), carry out the IVD Initialization sequence. Follow the scan tool directions.
