Smart Junction Box (SJB)
NOTE:
For component location, see ELECTRICAL COMPONENT LOCATOR
article.

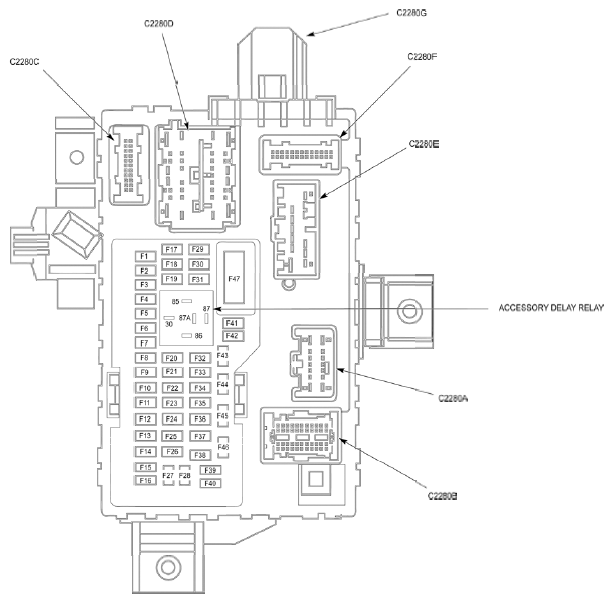

SMART JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ACCESSORY DELAY RELAY |
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, passenger side front - MKX |
| F2 | 15 | Not used |
| F3 | 15 | Accessory Protocol Interface Module (APIM) - with SYNC |
| FA | 30 | Power window motor, driver side front |
| F5 | 10 | Keyless entry keypad, Rear seat release relay, Floor shifter |
| F6 | 20 | Rear park/stop/turn lamps, Trailer taw left stop/turn lamp relay, Trailer taw right stop/turn lamp relay/Front park/turn lamps - Edge, Headlamps - MKX |
| F7 | 10 | Low beam lamp, left front - Edge, Headlamp, left - MKX |
| F8 | 10 | Low beam lamp, right front - Edge, Headlamp, right - MKX |
| F9 | 15 | Cargo lamp, Overhead console, Interior lamps, center |
| F10 | 15 | Exterior rear view mirrors, Floor shifter, Message center switch, Hazard/PAD/Traction switch, Headlamp switch, HVAC module, EMTC - with manual A/C, Steering wheel switches, Roof opening panel switch, Window adjust switches, Seat heater switches, Door lock switches, Memory set switch, Power liftgate release switch, Ambient lighting switch |
| F11 | 10 | All Wheel Drive (AWD) module |
| F12 | 7.5 | Exterior rear view mirror switch, Driver Seat Module (DSM), Left power seat switch |
| F13 | 5 | Satellite Digital Audio Receiver System (SDARS) module |
| F14 | 10 | liftgate! Trunk Module (LTM) |
| F15 | 10 | HVAC module, EMTC - with manual A/C, HVAC module, DATC - with automatic A/C |
| F16 | 15 | Not used |
| F17 | 20 | Door lock actuators, Roof opening panel motor assembly, Power window motors, Liftgate ajar switch - without power liftgate, Liftgate Trunk Module (LTM) |
| F18 | 20 | Audio Digital Signal Processing (DSP) module, Audio amplifier |
| F19 | 25 | Rear window wiper motor |
| F20 | 15 | Data Link Connector (DLC) |
| F21 | 15 | Headlamp switch, Fog lamps |
| F22 | 15 | Side lamps, Front park/turn lamps - Edge, Headlamps MKX, Trailer tow park lamp relay, Rear park/stop/turn lamps, Rear marker lamps, License lamps/liftgate release switch - Edge, License plate lamps - MKX, Illuminated liftgate applique - MKX |
| F23 | 15 | High beam lamps - Edge, Headlamps - MKX |
| F24 | 20 | Horn |
| F25 | 10 | Vanity mirror lamps, Overhead console, Interior lamps, center |
| F26 | 10 | Instrument Cluster (IC) |
| F27 | 20 | Ignition switch |
| F28 | 5 | Audio Control Module (ACM) |
| F29 | 5 | Instrument Cluster (IC) |
| F30 | 5 | Floor shifter |
| F31 | 10 | Not used |
| F32 | 10 | Not used |
| F33 | 10 | Not used |
| F34 | 5 | Steering Angle Sensor Module (SASM) |
| F35 | 10 | All Wheel Drive (AWD) module Parking Aid Module (PAM), Stability control sensor cluster, Heated seat modules |
| F36 | 5 | Passive anti-theft transceiver |
| F37 | 10 | Air inlet door actuator, HVAC module, EMTC - with manual A/C. HVAC module, DATC - with automatic A/C |
| F38 | 20 | Audio Digital Signal Processing (DSP) module, Subwoofer |
| F39 | 20 | Audio Control Module (ACM) |
| F40 | 20 | Not used |
| F41 | 15 | Audio Control Module (ACM), Roof opening panel, Door lock switches, Power window motors, Master window adjust switch, Auto-dimming interior mirror unit, Ambient lighting module, Ambient lighting switch |
| F42 | 10 | Not used |
| F43 | 10 | Rear window wiper motor |
| F44 | 10 | Not used |
| F45 | 5 | Smart wiper module, Blower motor relay, Rear window defrost relay, Heated mirror relay |
| F46 | 7.5 | Restraints Control Module (RCM), Hazard/Pad/Traction switch, Occupant Classification System Module (OCSM) |
| F47 | 30 c.b. | Master window adjust switch |
