All Wheel Drive Module Connector (C281)

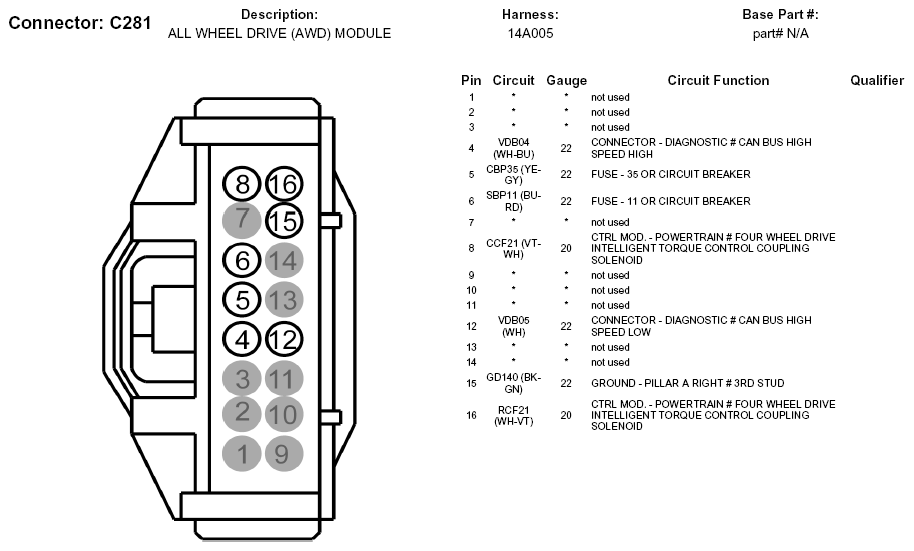

Fig 1: All Wheel Drive Module Connector End View (C281)
G05746961Courtesy of FORD MOTOR CO.
