Cooling Fan Module Connector (C1554)

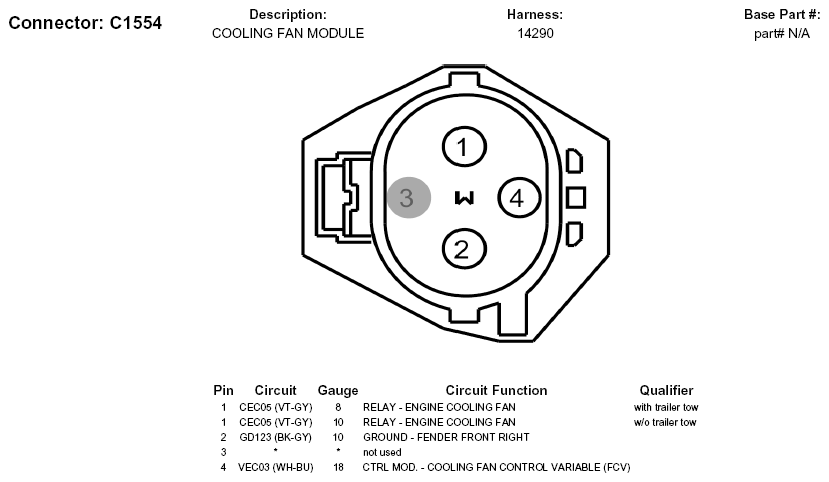

Fig 1: Cooling Fan Module Connector End View (C1554)
G05747095Courtesy of FORD MOTOR CO.
