Driver Safety Canopy Module Connector(C9018)

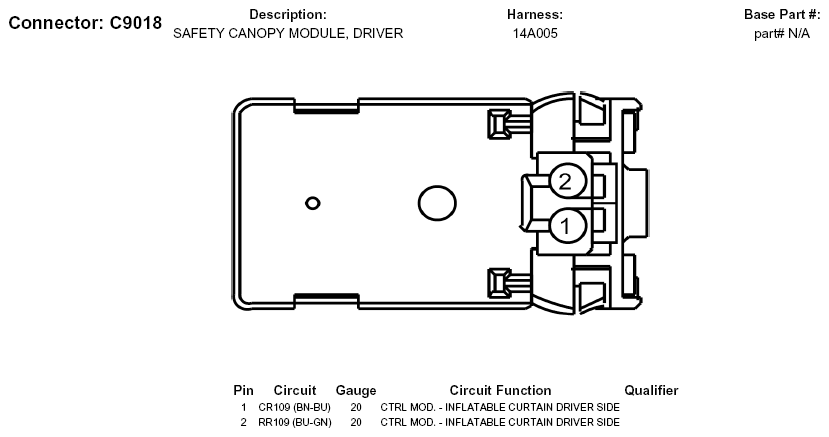

Fig 1: Driver Safety Canopy Module Connector End View (C9018)
G05747221Courtesy of FORD MOTOR CO.
