Liftgate Rear Control Switch Connector (C4333)
Liftgate Rear Control Switch Connector (C4333)

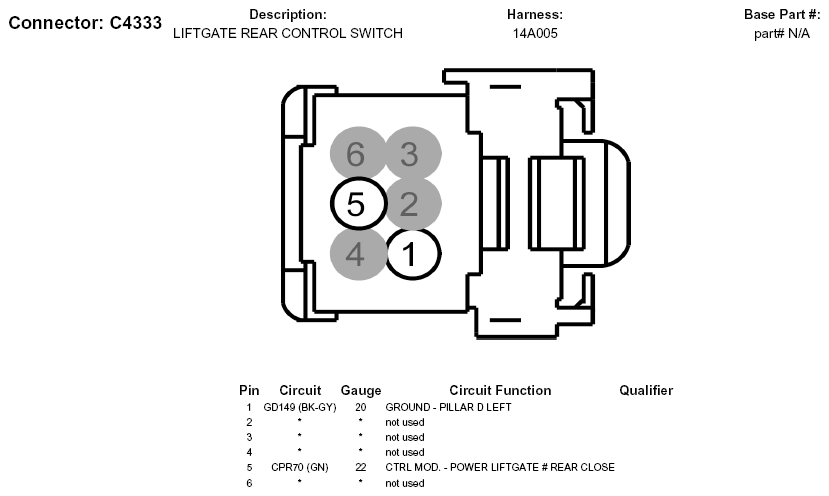

Fig 1: Liftgate Rear Control Switch Connector End View (C4333)
Courtesy of FORD MOTOR CO.
