Occupant Classification System Module Connector (C3159)

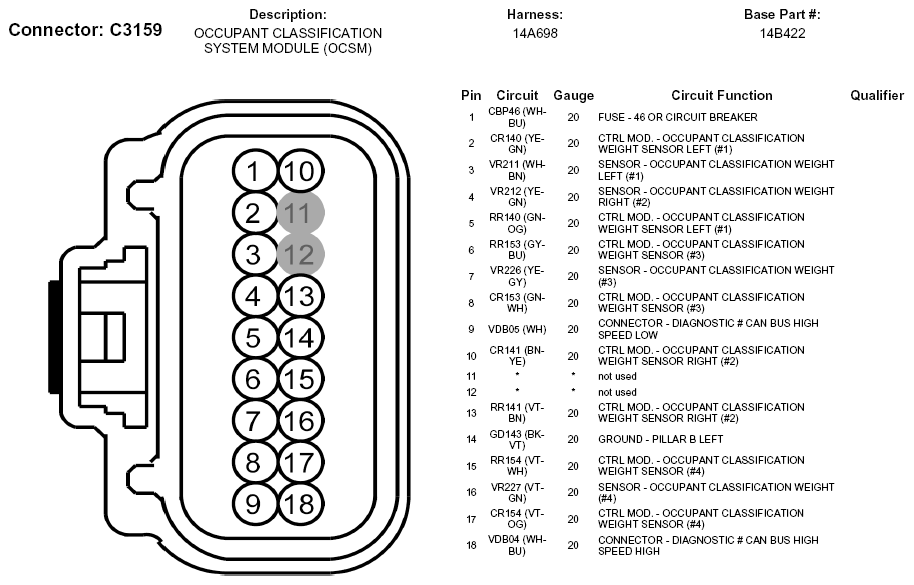

Fig 1: Occupant Classification System Module Connector End View (C3159)
G05747142Courtesy of FORD MOTOR CO.
