Satellite Digital Audio Receiver System Module Connector (C4344)
Satellite Digital Audio Receiver System Module Connector (C4344)

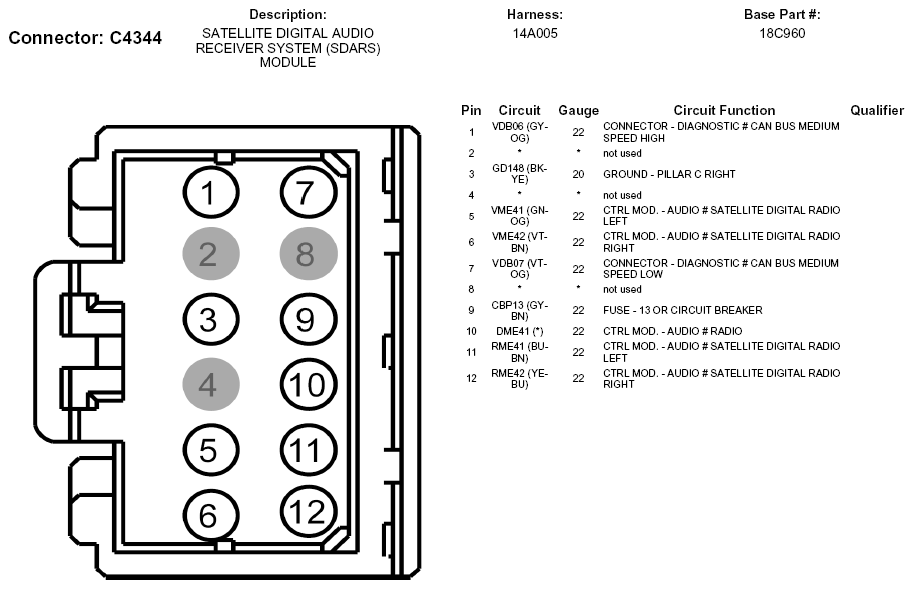

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C4344)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
