Smart Wiper Module Connector (C1552)
Smart Wiper Module Connector (C1552)

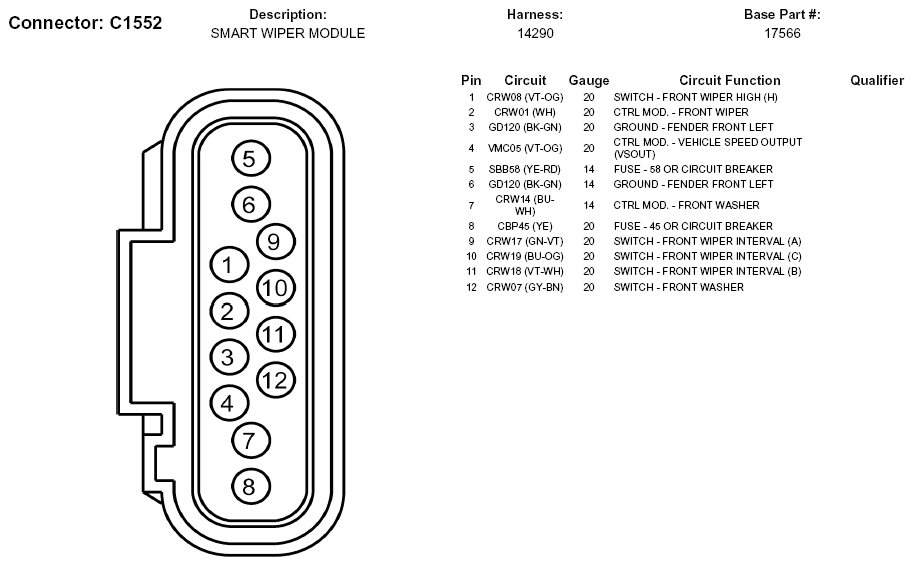

Fig 1: Smart Wiper Module Connector End View (C1552)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
