Stability Control Sensor Cluster Connector (C3037)

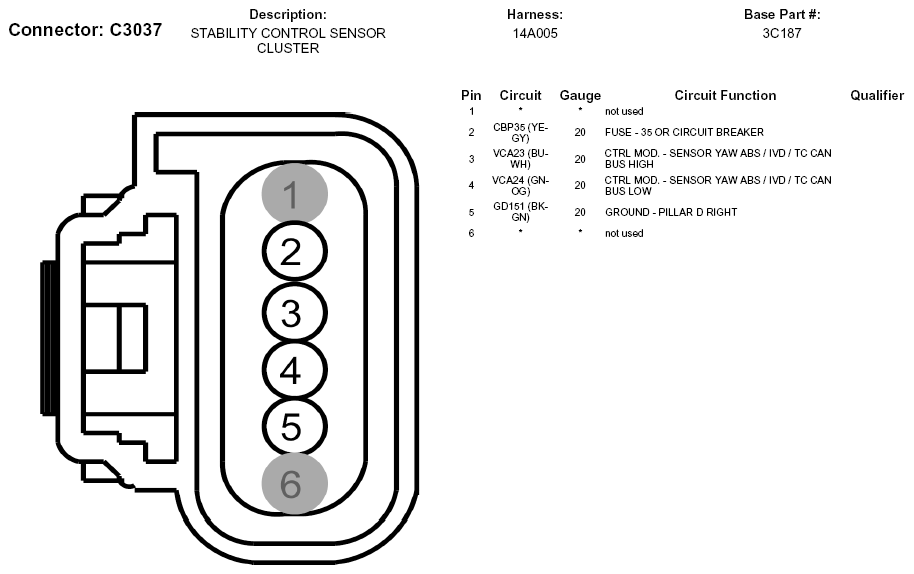

Fig 1: Stability Control Sensor Cluster Connector End View (C3037)
G05747133Courtesy of FORD MOTOR CO.
