Steering Angle Sensor Module Connector (C222)

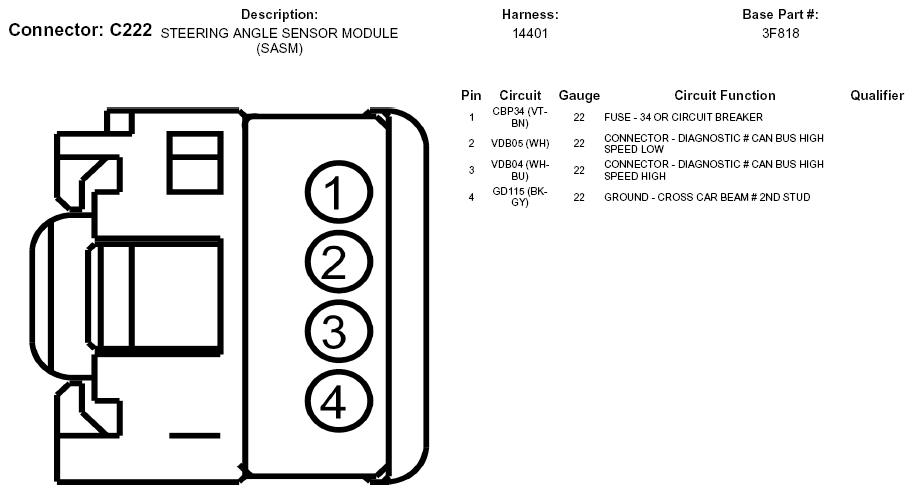

Fig 1: Steering Angle Sensor Module Connector End View (C222)
G05746941Courtesy of FORD MOTOR CO.
