Oil Cooler: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

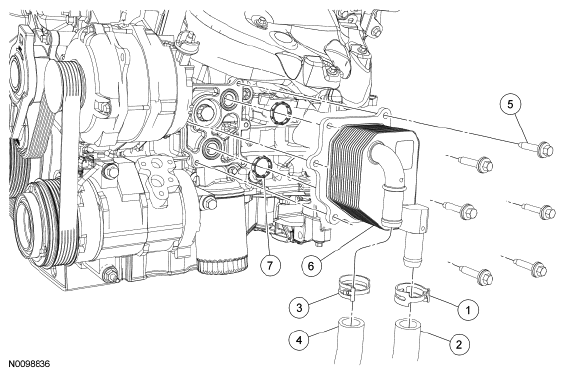

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W503277 |
Oil cooler bolt (6 required) |
| 2 |
15161 |
Coolant hose clamp |
| 3 |
8N021 |
Coolant hose |
| 4 |
8B274 |
Coolant hose |
| 5 |
15161 |
Coolant hose clamp |
| 6 |
6A642 |
Oil cooler |
| 7 |
6A636 |
Oil cooler gasket (2 required) |
