Removal And Installation: Spring: Notes
WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

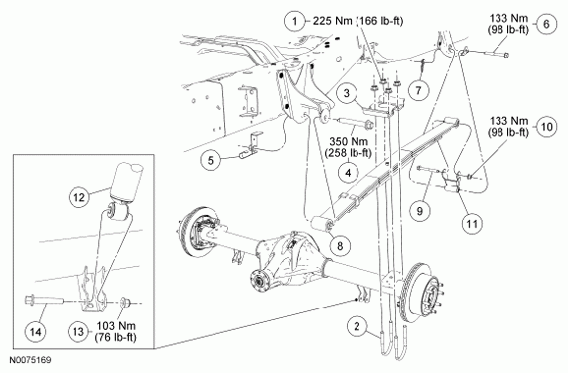

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | W520116 | U-bolt nut (4 required) |
| 2 | N803914 | U-bolt (2 required) (E-150, E-250 and E-350 Van and wagon) |
| 2 | 5705 | U-bolt (2 required) (E-450) |
| 2 | N804419 | U-bolt (2 required) (E-350 Regular cab and cutaway) |
| 3 | 5798 | U-bolt plate |
| 4 | W713561 | Leaf spring front bracket bolt |
| 5 | N807044 | Leaf spring front bracket flagnut (RH side) |
| 5 | 2B615 | Leaf spring front bracket flagnut (LH side) |
| 6 | N806568 | Leaf spring shackle-to-bracket bolt |
| 7 | N805408 | Leaf spring shackle-to-bracket flagnut |
| 8 | 5560 | Leaf spring |
| 9 | W707529 | Leaf spring-to-shackle bolt |
| 10 | W520115 | Leaf spring-to-shackle nut |
| 11 | 5776 | Leaf spring shackle |
| 12 | 18125 | Shock absorber |
| 13 | W520214 | Shock absorber lower nut |
| 14 | W708737 | Shock absorber lower bolt |
