Radius Arm: Notes
WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

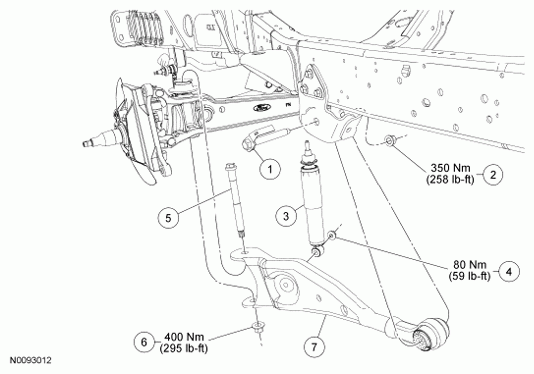

Courtesy of FORD MOTOR CO. PART NUMBER REFERENCE
| Item |
Part Number |
Description |
| 1 |
W714042 |
Radius arm rearward flag bolt |
| 2 |
N807659 |
Radius arm rearward nut |
| 3 |
18045 |
Shock absorber |
| 4 |
N806085 |
Shock absorber lower nut |
| 5 |
N806592 |
Radius arm-to-axle bolt |
| 6 |
N805028 |
Radius arm-to-axle nut |
| 7 |
3A292 |
LH/3405 RH Radius arm |
