Stabilizer Bar: Notes

WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

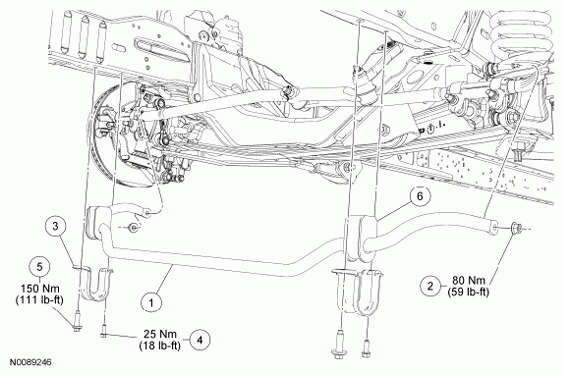

Fig 1: Stabilizer Bar Replacement Components With Torque Specifications
G06136779Courtesy of FORD MOTOR CO.
PART NUMBER REFERENCE

Item Part Number Description
1 5482 Stabilizer bar
2 W710269 Stabilizer bar link lower nut (2 required)
3 5486 Stabilizer bar bracket (2 required)
4 N801954 Stabilizer bar bracket rearward bolt (2 required)
5 W707284 Stabilizer bar bracket forward bolt (2 required)
6 5484 Stabilizer bar bushing (2 required)
