Steering Wheel Rotation Sensor: Notes
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

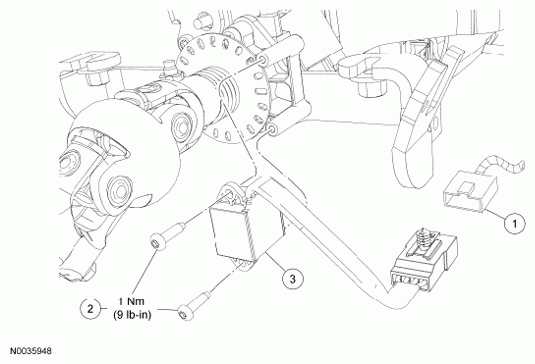

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Steering wheel rotation sensor electrical connector (part of 14401) |
| 2 | 390345 | Steering wheel rotation sensor bolts (2 required) |
| 3 | 3F818 | Steering wheel rotation sensor |

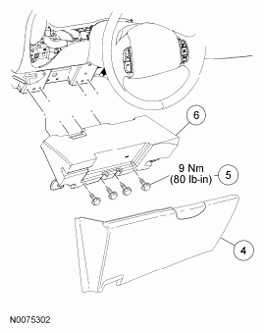

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 4 | 1504459 | Steering column opening cover |
| 5 | N808401 | Instrument panel LH knee bolster bolt (4 required) |
| 6 | 15043C74 | Instrument panel LH knee bolster |
