Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

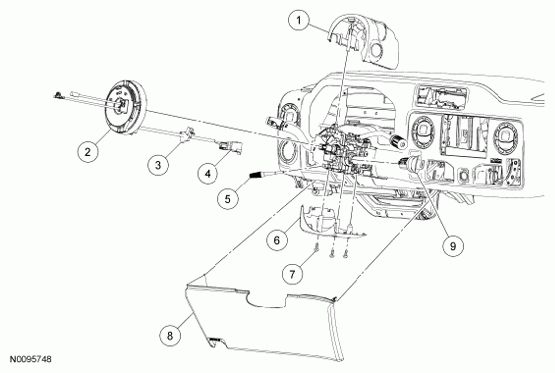

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 14A664 | Clockspring |
| 3 | - | Clockspring wiring retaining clip (2 required) (part of 14A664) |
| 4 | - | Electrical connector (part of 14A664) |
| 5 | 3F609 | Tilt lever/handle |
| 6 | 3533 | Lower steering column shroud |
| 7 | - | Lower steering column shroud screw (3 required) |
| 8 | 44F08 | Steering column opening cover |
| 9 | 11582 | Ignition lock cylinder |
