Passenger Air Bag Module: Notes
WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

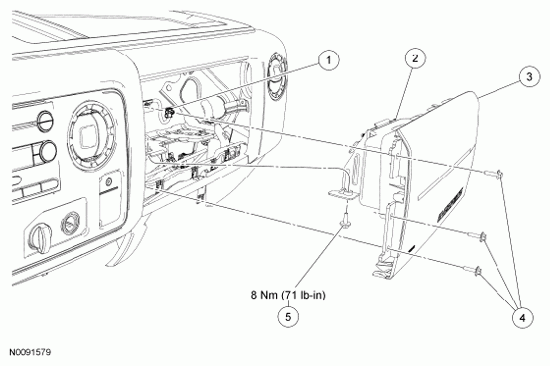

Courtesy of FORD MOTOR CO. PART NUMBER REFERENCE
| Item |
Part Number |
Description |
| 1 |
- |
Electrical connector (part of 14401) |
| 2 |
044A74 |
Passenger air bag module assembly |
| 3 |
04338 |
Passenger air bag trim cover |
| 4 |
W707628 |
Passenger air bag trim cover bolts (3 required) |
| 5 |
W505422 |
Passenger air bag module-to-cross beam bolt (2 required) |
