Restraints Control Module (RCM): Notes

WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

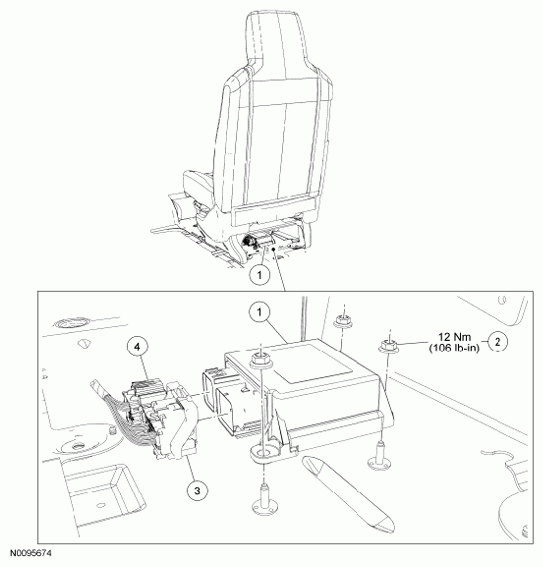

Fig 1: Restraints Control Module (RCM) With Torque Specifications
G06142468Courtesy of FORD MOTOR CO.
PART NUMBER REFERENCE

Item Part Number Description
1 14B321 Restraints Control Module (RCM)
2 - RCM  nut (3 required)
3 - RCM  large connector (part of 14405)
4 - RCM  small connector (part of 14405)
