Driver Side Air Bag Module Connector (C3321)
Driver Side Air Bag Module Connector (C3321)

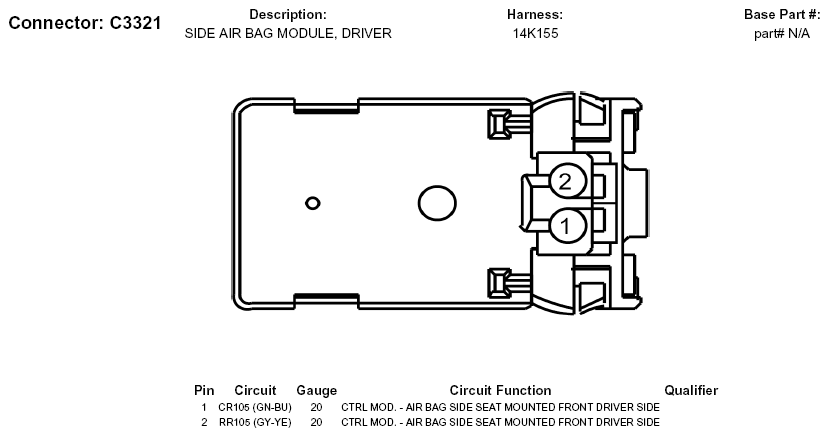

Fig 1: Driver Side Air Bag Module Connector End View (C3321)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
