Liftgate Release Switch Connector (C4216)
Liftgate Release Switch Connector (C4216)

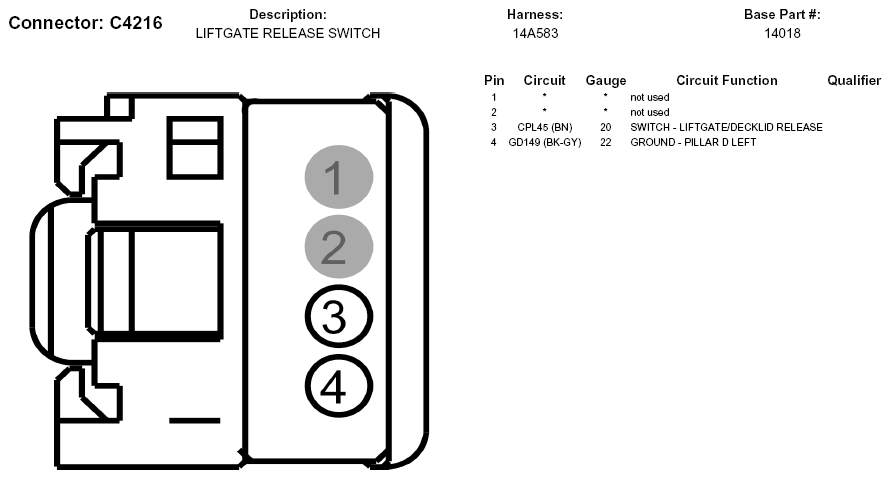

Fig 1: Liftgate Release Switch Connector End View (C4216)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
