Message Center Switch Connector (C253)
Message Center Switch Connector (C253)

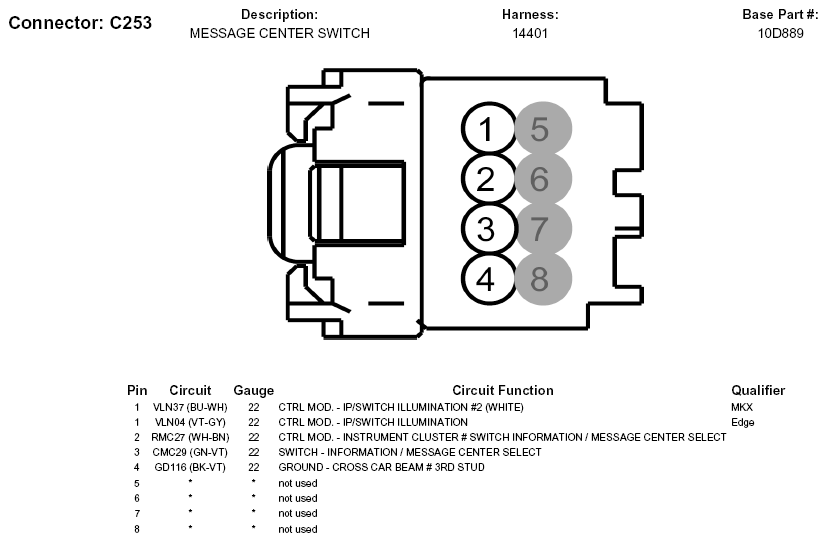

Fig 1: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
