Power Liftgate Release Switch Connector (C2269)

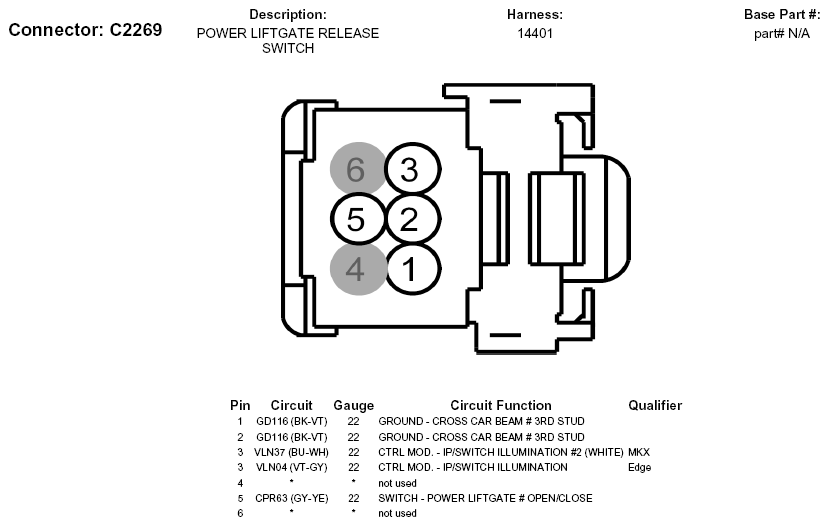

Fig 1: Power Liftgate Release Switch Connector End View (C2269)
G05747106Courtesy of FORD MOTOR CO.
