Steering Column: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

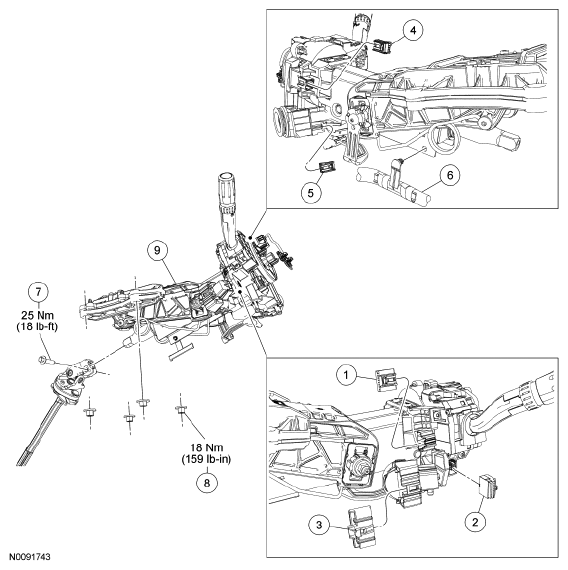

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Multifunction switch electrical connector (part of 14401) |
| 2 | - | Clockspring electrical connector (part of 14401) |
| 3 | - | Ignition switch electrical connector (part of 14401) |
| 4 | - | Steering wheel rotation sensor electrical connector (part of 14401) |
| 5 | - | Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 6 | - | Wiring harness and pin-type retainer (part of 14401) |
| 7 | N808349 | Steering column shaft-to-steering column bolt |
| 8 | N806432 | Steering column nut (4 required) |
| 9 | 3C529 | Steering column |
