Front Display Interface Module (FDIM): Notes

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Without navigation shown, with navigation similar.

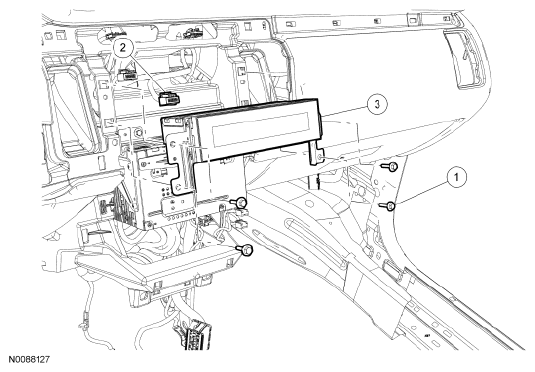

Fig 1: Identifying Front Display Interface Module (FDIM) Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W707628-S	Front Display Interface Module (FDIM) screws (4 required)
2	-	FDIM electrical connector (part of 14401)
3	10D885	FDIM
