Safety Belt Retractor - Rear: Notes

NOTE: RH side shown, LH similar.

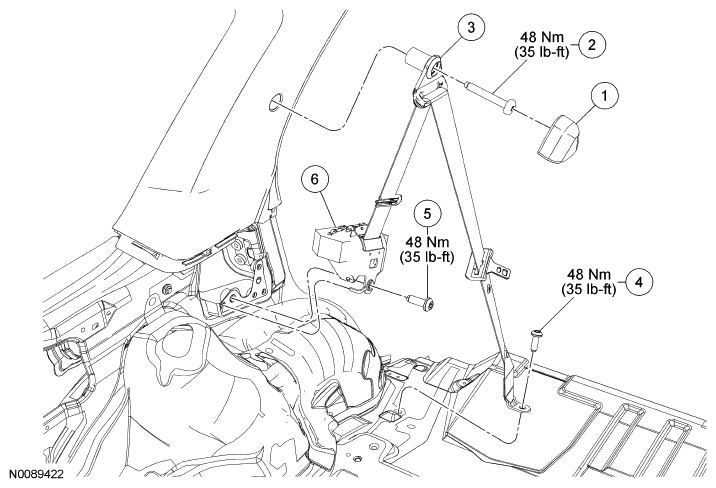

Fig 1: Exploded View Of Safety Belt Retractor - Rear

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	613C46	D-ring cover
2	-	D-ring bolt (part of 611B68)
3	-	Safety belt D-ring (part of 611B68)
4	-	Safety belt anchor bolt (part of 611B68)
5	-	Safety belt retractor bolt (part of 611B68)
6	611B68	Rear safety belt retractor
