Satellite Digital Audio Receiver System (SDARS) Module: Notes

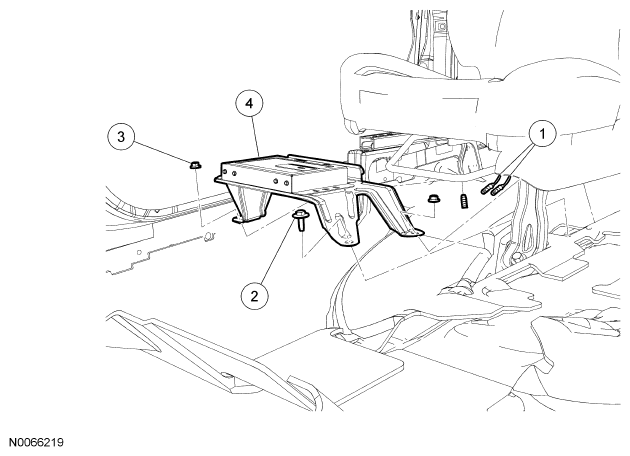

Fig 1: Identifying Satellite Digital Audio Receiver System Module

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Satellite Digital Audio Receiver System (SDARS) module antenna cable and electrical connectors
2	W707257-S	SDARS module bolt
3	W707142-S	SDARS module nuts (2 required)
4	18806	SDARS module
