Engine Ignition Components - Exploded View

Engine Ignition LH

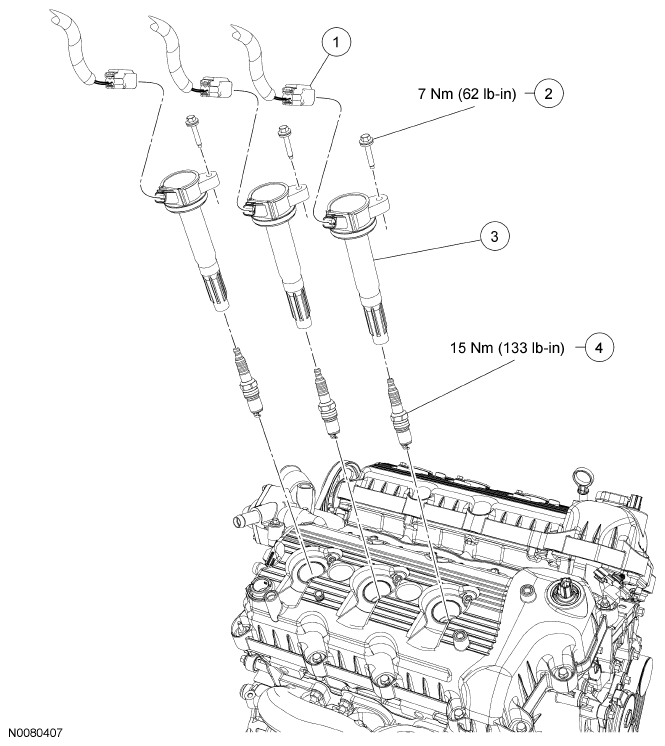

Fig 1: Exploded View Of Engine Ignition Components LH

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	LH ignition coil electrical connector (3 required)
2	W708833	LH ignition coil bolt (3 required)
3	12A375	LH ignition coil (3 required)
4	12405	LH spark plug (3 required)

Engine Ignition RH

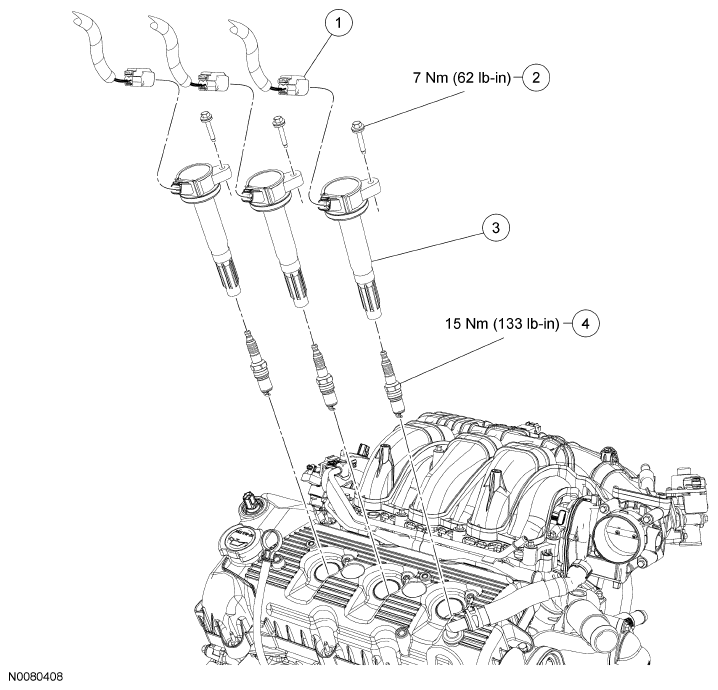

Fig 2: Exploded View Of Engine Ignition Components RH

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	RH ignition coil electrical connector (3 required)
2	W708833	RH ignition coil bolt (3 required)
3	12A375	RH ignition coil (3 required)
4	12405	RH spark plug (3 required)
