Seat Control Switch - Third Row: Notes

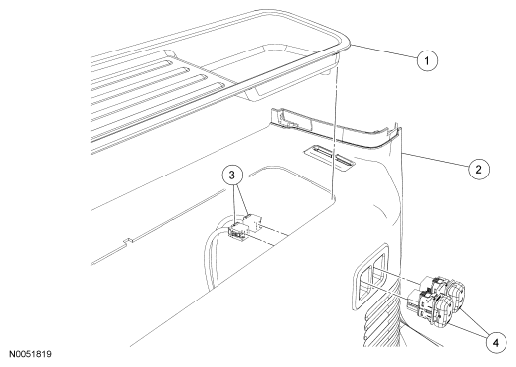

Fig 1: Identifying Third Row Seat Control Switch

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	13530	Tray, RH rear quarter trim panel
2	31012	RH rear quarter trim panel
3	-	Electrical connectors (part of wire harness 13A409)
4	14C715	LH and RH third row seat control switches
