Fuel Pump Control Module: Notes

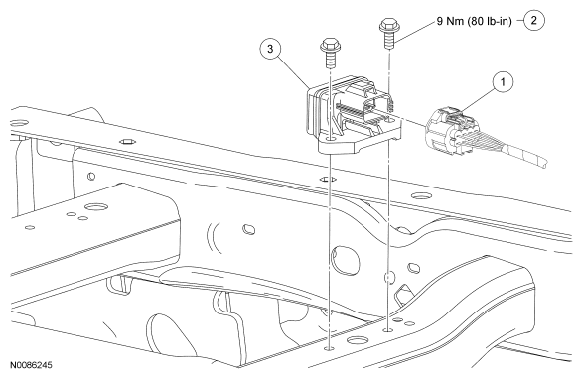

Fig 1: Fuel Pump Control Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	14A464 Fuel	Pump (FP) control module electrical connector (part of 14404)
2	W705549	FP  control module bolt (2 required)
3	9D412	FP  control module
