Audio Rear Control Unit (RCU) Module: Notes

NOTE: Expedition shown, Navigator similar.

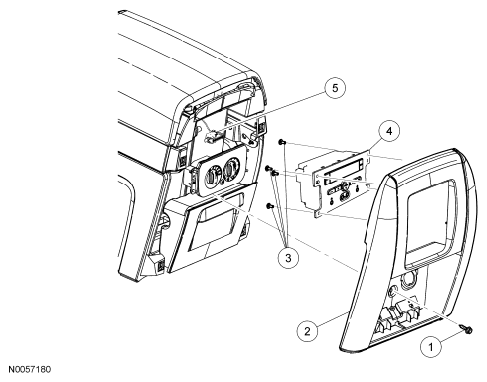

Fig 1: Identifying Audio Rear Control Unit (RCU) Module Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Center console rear trim panel bolt
2	78045A12	Center console rear trim panel
3	W506821-S	Audio Rear Control Unit (RCU) screws (4 required)
4	19A164	Audio RCU  module
5	-	Audio RCU  module electrical connector (part of 14B079)
