Roof opening panel switch: Schematic

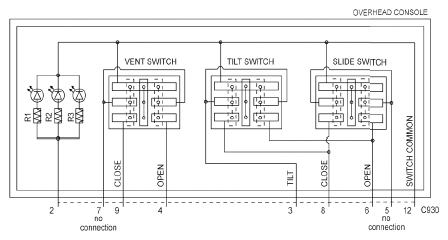

Fig 1: Roof Opening Panel Switch Schematic
G05753258Courtesy of FORD MOTOR CO.
