Speed Control Switch: Notes

Expedition & Expedition EL

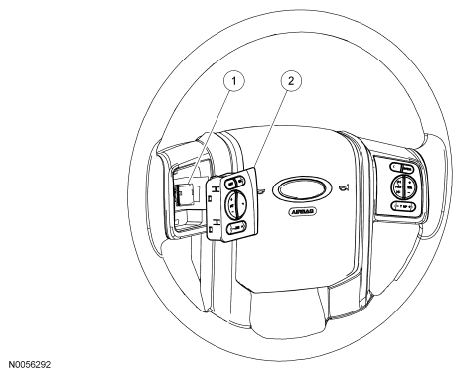

Fig 1: Identifying Speed Control Switch (Expedition & Expedition EL)

Courtesy of FORD MOTOR CO.

ITEM PART NUMBER DESCRIPTION CHART

Item	Part Number	Description
1	-	Speed control switch electrical connector (part of 3600)
2	9E740	Speed control switch

Navigator & Navigator L

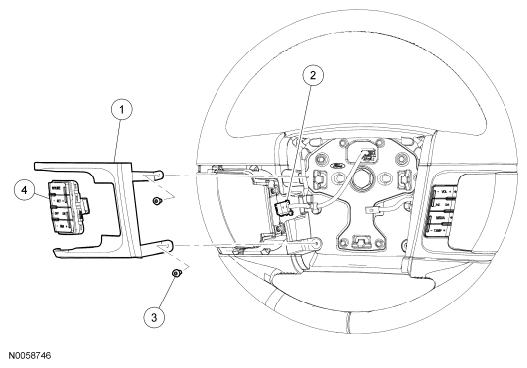

Fig 2: Identifying Speed Control Switch Components (Navigator & Navigator L)

Courtesy of FORD MOTOR CO.

ITEM PART NUMBER DESCRIPTION CHART

Item	Part Number	Description
1	-	Steering wheel controls bezel (part of 3600)
2	-	Speed control switch electrical connector (part of 3600)
3	-	Steering wheel controls bezel screws (2 required)
4	9E740	Speed control switch
