Audio Rear Control Unit Module Connector - C3077
Audio Rear Control Unit Module Connector - C3077

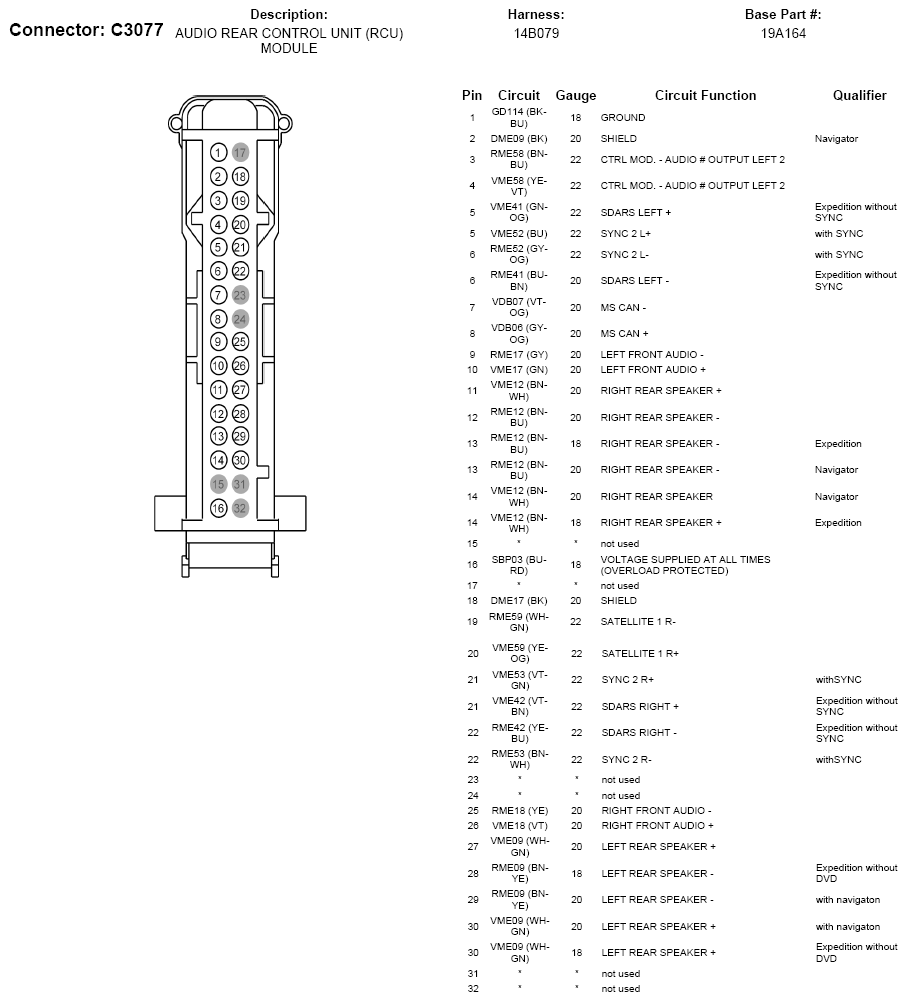

Fig 1: Audio Rear Control Unit Module Connector End View (C3077)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
