Fuel Pump Control Module Connector - C4033

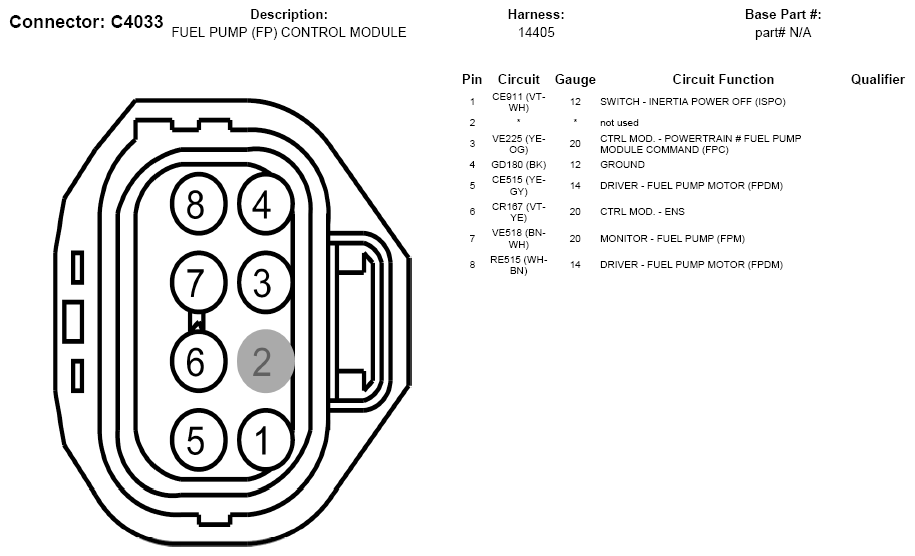

Fig 1: Fuel Pump Control Module Connector End View (C4033)
G05746828Courtesy of FORD MOTOR CO.
