Keyless Entry Keypad Connector - C500

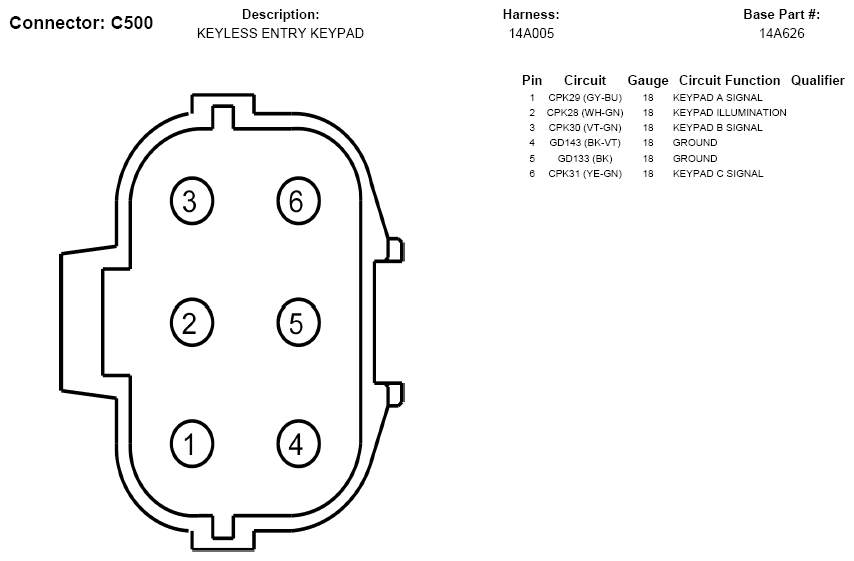

Fig 1: Keyless Entry Keypad Connector End View (C500)
G05746616Courtesy of FORD MOTOR CO.
