Rear Entertainment Module Connector - C949
Rear Entertainment Module Connector - C949

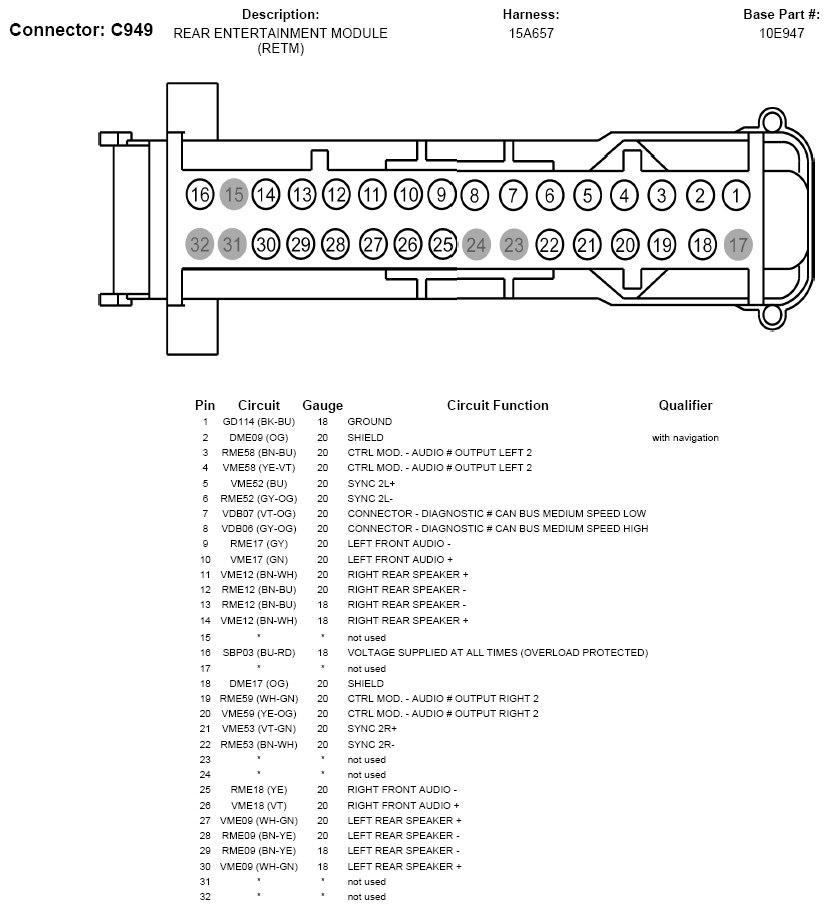

Fig 1: Rear Entertainment Module Connector End View (C949)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
