Roof Opening Panel Module Connector - C921

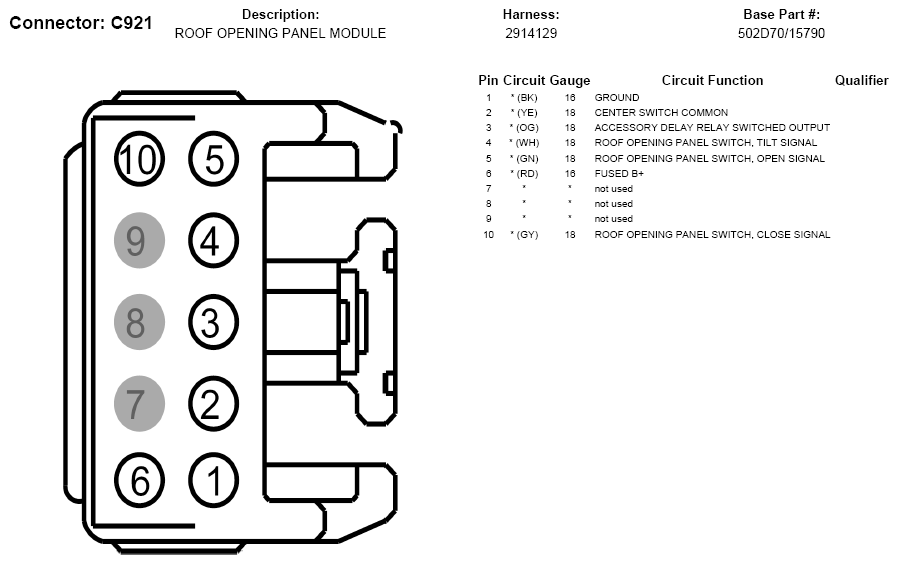

Fig 1: Roof Opening Panel Module Connector End View (C921)
G05746667Courtesy of FORD MOTOR CO.
