Audio Digital Signal Processing (DSP) Module Lower Attachment

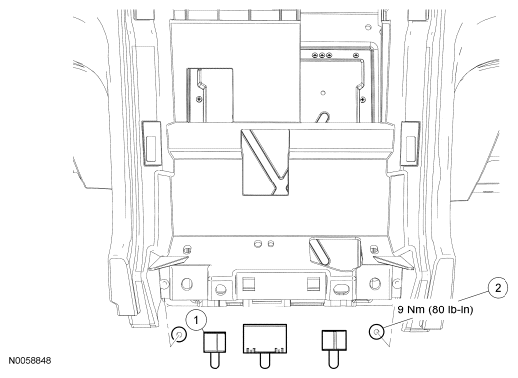

Fig 1: Identifying Audio Digital Signal Processing (DSP) Module Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Audio Digital Signal Processing (DSP) module electrical connectors (part of 14401)
2	W701152-S	Audio DSP  module lower nuts (2 required)
