Rear Entertainment Module (RETM): Notes

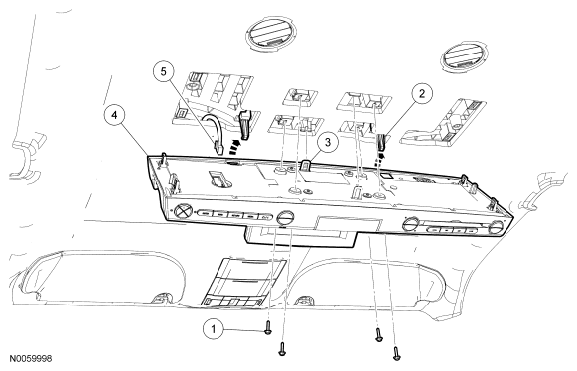

Fig 1: Identifying Rear Entertainment Module (RETM) Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W704875-S	Rear Entertainment Module (RETM) screws (4 required)
2	-	J-hook (part of 10E957)
3	-	U-hook (part of 10E947)
4	10E947	RETM
5	-	RETM  electrical connector (part of 15A657)
