Transfer Case - Navigator: Material
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Transfer Case Fluid XL-12 |
ESP-M2C166-H |
| Ultra Silicone Sealant TA-29 |
- |

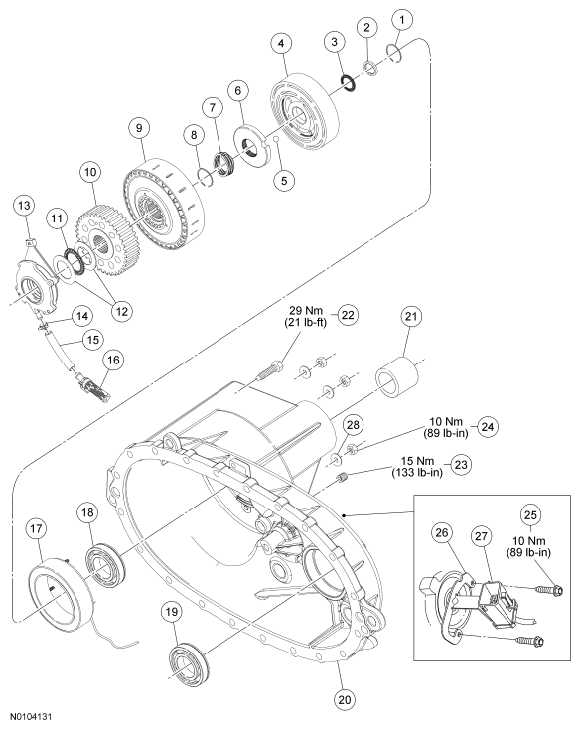

1-Speed Transfer Case - Rear View
ITEM PART NUMBER DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7917 | Snap ring |
| 2 | 7N063 | Spacer |
| 3 | 7D221 | Caged thrust bearing |
| 4 | 7G362 | Hub and coil housing |
| 5 | 7A534 | Ball (3 required) |
| 6 | 7R428 | Cam |
| 7 | 7D126 | Wave spring |
| 8 | 7917 | Snap ring |
| 9 | 7C108 | Clutch pack assembly |
| 10 | 7177 | Drive sprocket |
| 11 | 7D221 | Caged thrust bearing |
| 12 | 7C341 | Thrust washer (2 required) |
| 13 | 7A149 | Oil pump assembly |
| 14 | 7H298 | Hose clamp |
| 15 | 4090 | Oil pump pickup hose |
| 16 | 7A098 | Oil pickup and filter |
| 17 | 7G361 | Transfer case field coil |
| 18 | 7025 | Rear output shaft support bearing |
| 19 | 7025 | Front output shaft rear bearing |
| 20 | 7005 | Case |
| 21 | - | Rear output shaft support bushing (part of 7005) |
| 22 | 7A443B | Transfer case bolt (20 required) |
| 23 | 7A010 | Fill plug |
| 24 | 7045 | Coil nut (3 required) |
| 25 | 7A443A | Connector bracket bolt (2 required) |
| 26 | 7K740 | Connector bracket |
| 27 | 14A464 | Connector |
| 28 | 7B368 | Washer |

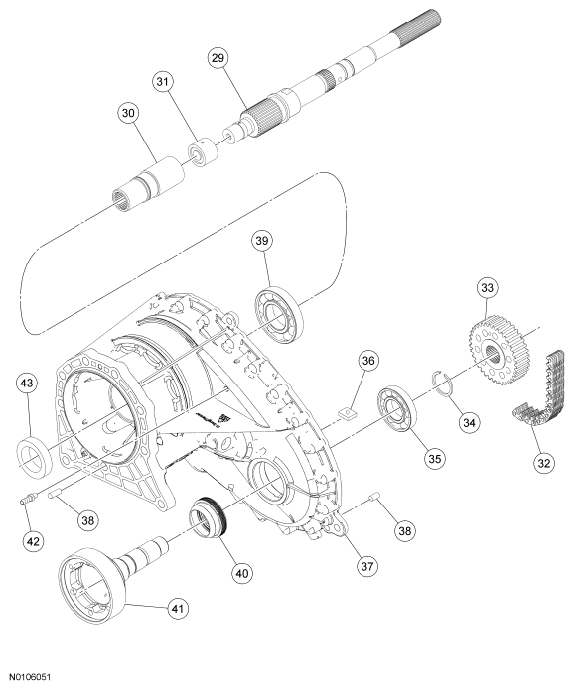

1-Speed Transfer Case - Front View
ITEM PART NUMBER DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 29 | 7061 | Output shaft |
| 30 | 7017 | Output shaft collar |
| 31 | 7A149 | Input gear |
| 32 | 7A029 | Drive chain |
| 33 | 7177 | Driven sprocket |
| 34 | 7917 | Snap ring |
| 35 | 7025 | Front output shaft support bearing |
| 36 | 7E290 | Magnet |
| 37 | 7005 | Case |
| 38 | 7B362 | Dowels |
| 39 | 7025 | Front input shaft support bearing |
| 40 | 7B215 | Front output shaft oil seal |
| 41 | 7061 | Front output shaft |
| 42 | 7034 | Vent tube |
| 43 | 7B215 | Input flange seal |
