Axle Code

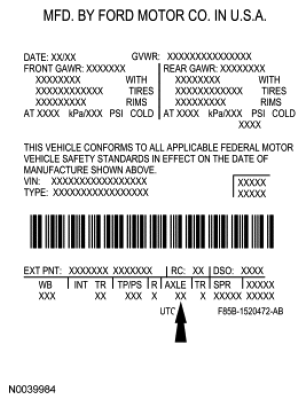

Fig 1: Locating Axle Code

G06064822

Courtesy of FORD MOTOR CO.

15 - 3.31 ratio, non-limited slip
16 - 3.73 ratio, non-limited slip
H6 - 3.73 ratio, limited slip
