Notes
Hydraulic Circuit Identification and Function: Notes

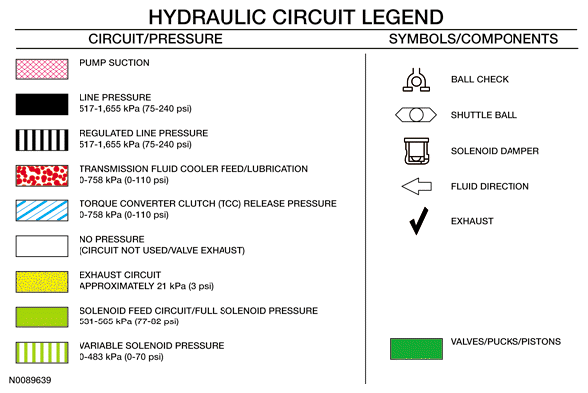

Fig 1: Hydraulic Circuit Identification And Function Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
