Direct Clutch Drum Assembly: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring	307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal	307-049 (T74P-77404-A)
Courtesy of FORD MOTOR CO.	Sizer, Piston Seal	307-336 (T95L-70010-E)

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

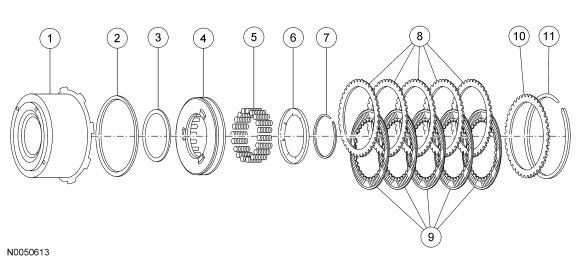

Fig 1: Direct Clutch Drum Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7D044	Intermediate brake drum assembly
2	7A548	Direct piston outer seal ring
3	7D404	Direct piston inner seal ring
4	7A262	Direct clutch piston
5	7A480	Direct piston spring (20 required)
6	7A527	Direct clutch piston spring retainer
7	E860125-S	Retaining ring
8	7B442	Direct clutch external spline plates - steel
9	7B164	Direct clutch internal spline plates - friction
10	7B066	Direct clutch pressure plate
11	E860126S/129S	Retaining ring (select fit)
