Steering Column Shaft - Upper: Notes

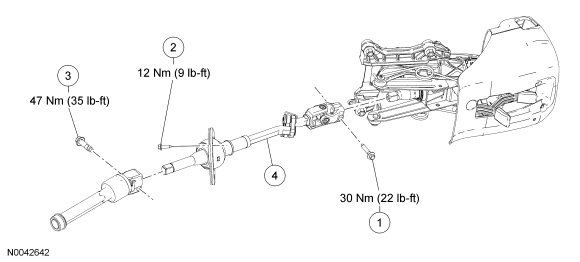

Fig 1: Exploded View Of Upper Steering Column Shaft With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808684	Upper steering column shaft-to-steering column bolt
2	W611624	Upper steering column shaft dash seal bolt (3 required)
3	W710570	Lower steering column shaft-to-upper steering column shaft bolt
4	3E751	Upper steering column shaft
