Homelink Module Connector - C928

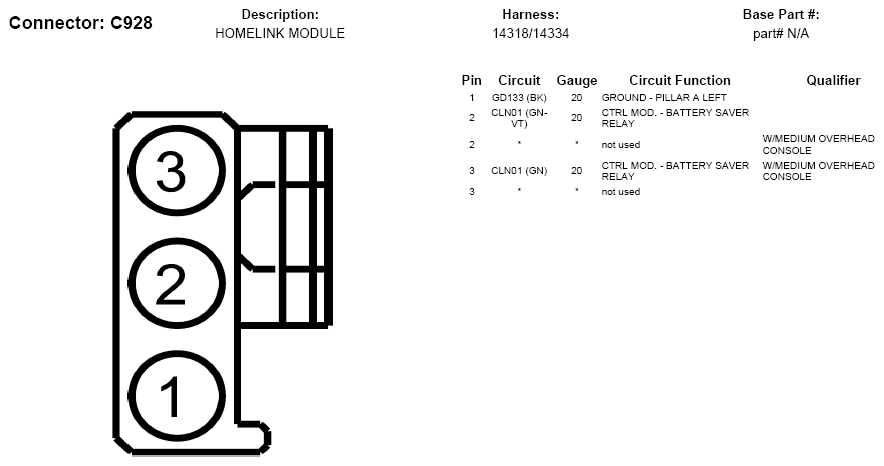

Fig 1: Homelink Module Connector End View (C928)
G05787913Courtesy of FORD MOTOR CO.
