Trailer Brake Control Module Connector - C239
Trailer Brake Control Module Connector - C239

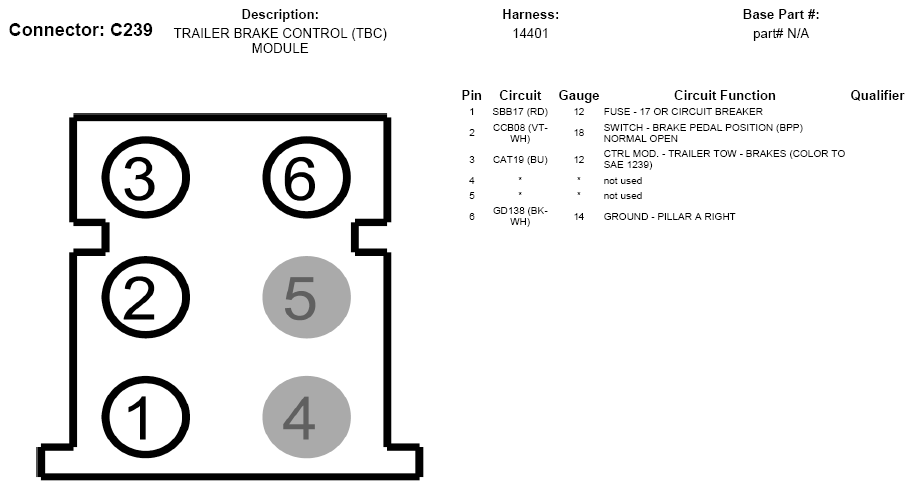

Fig 1: Trailer Brake Control Module Connector End View (C239)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
