Engine Ignition Components - Exploded View

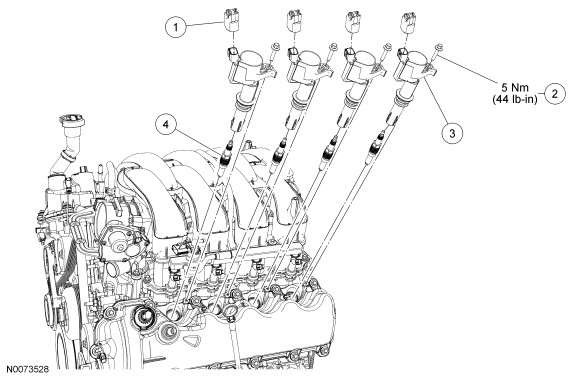

Fig 1: Ignition Components RH Side With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil-on-plug electrical connector (4 required) (part of 12B637)
2	W706175	Ignition coil-on-plug bolt (4 required)
3	12A366	Ignition coil-on-plug (4 required)
4	12405	Spark plug (4 required)

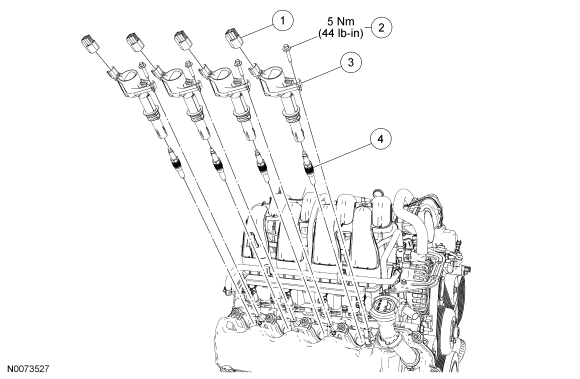

Fig 2: Ignition Components LH Side With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil-on-plug electrical connector (4 required) (part of 12B637)
2	W706175	Ignition coil-on-plug bolt (4 required)
3	12A366	Ignition coil-on-plug (4 required)
4	12405	Spark plug (4 required)

1. For additional information, refer to the procedures in this article.
